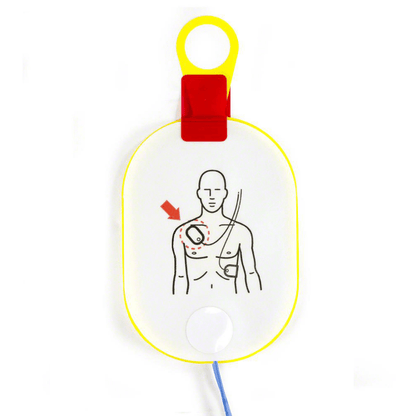

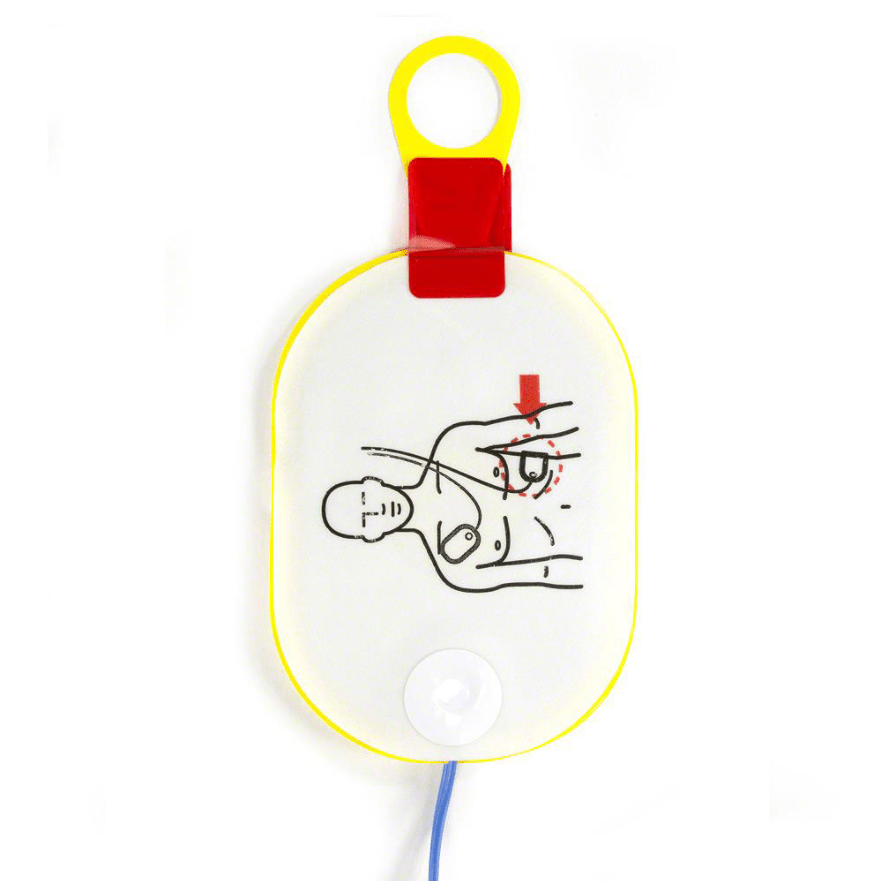

This Adult Replacement SMART Pads™ Electrode Cartridge works for both the Philips HeartStart® OnSite® AED and HeartStart® Home AED and comes in Philips’ convenient cartridge format. Each cartridge neatly stores one set of electrode pads behind a clear plastic cover and has the Philips "pull handle" built in.
Features:
Size: adults 8 years and older or weighing at least 55lbs (25kgs)
1.4 meter lead wire
To change the electrode pads for your Philips HeartStart OnSite or Home AED:
Slide the release latch at the top of the AED to the right to release it from the AED unit.
Remove the wrapper from the new cartridge and place the bottom of the cartridge into the bottom of the cartridge compartment on the front of the AED.
Press the top of the cartridge down so it snaps into place.
The Philips SMART adult electrode pads supply a nominal 150 joules into a 50-ohm load. Active surface area is 13 square inches (85 square centimeters) per pad, and the cable length is 54 inches (85 centimeters).
